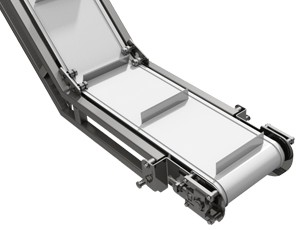

The CIC-600 is a stainless steel conveyor, designed for high sanitary conditions. It is ideal for transporting goods up inclines and features various "goose-neck" configurations.

Conveyor Features:

Drive Pulley Diameter: 4in.
Width:6 to 24 in., in 2 in. increments
Length:up to 48 ft.
Load:Up to 400 lbs.
Speed:Up to 150 fpm; Constant or Variable speed options
Motors:Stainless steel motors and reducers
Belting:All FDA approved, in a variety of finishes and colors
Cleats:0.25 to 3 in. tall
Angle Options(incline/decline): 15°, 30°, 45°, and 60°
