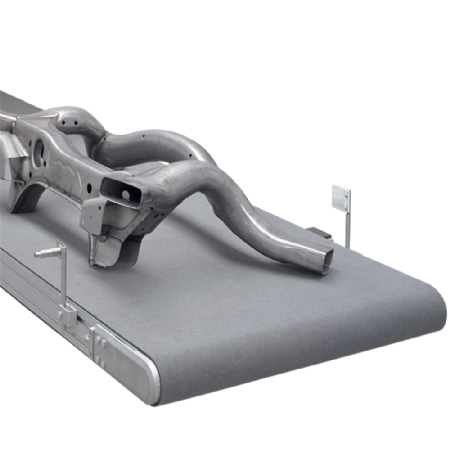

Heavy-Duty Belt Conveyor

Product Information for Heavy-Duty Belt Conveyor

The GUF-P 2041 heavy-duty belt conveyor is manufactured using our structural 40 x 80 mm profile. The result is a conveyor system with a modular, heavy-duty frame. The heavy-duty belt conveyor, GUF-P 2041, features dual t-slots on each side of the frame allowing for nearly twice as many accessories to be bolted to the frame.

Heavy-Duty Belt Conveyor Features:

• Frame:80 mm tall
• Pulley Diameter:Crowned pulley; 85 mm (head-drive) or 88 mm (center-drive); idler pulleys from 20 mm to 85 mm (depending on selection)
• Width:200 mm to 1,200 mm (in 100 mm increments)
• Length:600 mm to 10,000 mm
• Load:Up to 500 lbs.
• Speed:Up to 500fpm
  • Constant or Variable speed options
• Voltage:All standard US, Mexico and Canadian voltages

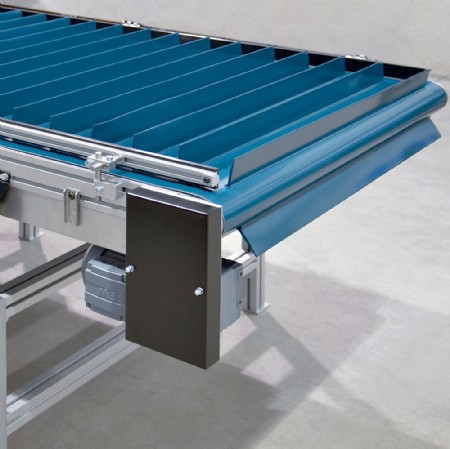

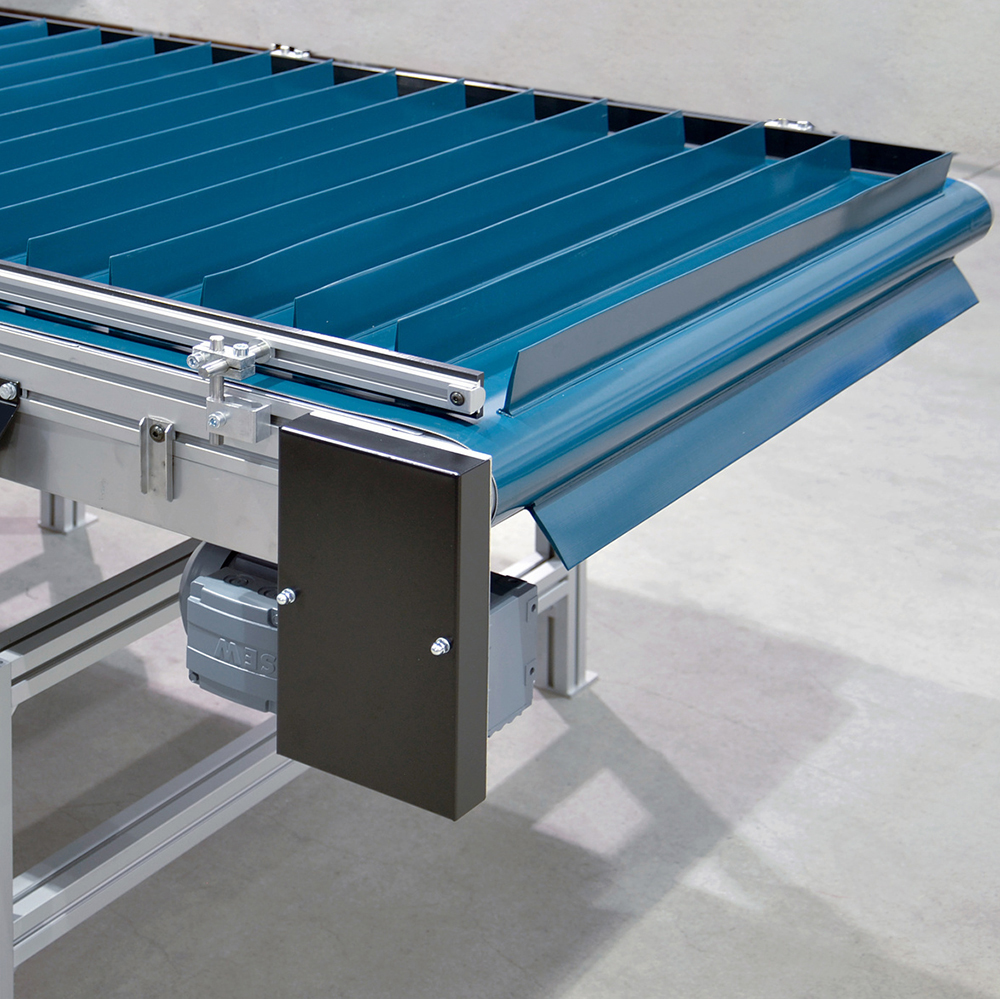

• Belting:Smooth, tacky, textured, anti-static, food grade, and cleated belts options
• Accessories:Compatible with allmkside rails and supports

Catalogs, Resources & Downloads for Heavy-Duty Belt Conveyor

• GUF-P 2041 Catalog Pages (4.0mb)
• Brochure, Aluminum Conveyor (17.8mb)
• Catalog, Aluminum Conveyor (10.4mb)
• Photo Gallery Conveyor Systems

Technical Specifications for Heavy-Duty Belt Conveyor

• Constructed using ourmk2040.02 structuralprofile
  • 80 mm deep anodized aluminum frame
  • Dual t-slots along both sides of the frame
• 18 gauge galvanized steel slider bed
• Belt widths are 10 mm less than frame width
• Maintenance-free dual-sealed ball bearings
• Standard crowned pulleys for improved tracking
• Available in head and center-drive configurations
  • Head-drive features a ø 85 mm pulley
  • Center-drive features a ø 88 mm pulley
• Available with an internal driven drive roller – no externaldriverequired
• A wide variety oftailoptions
  • ø 20 mm rolling nose bar
  • Gang drives for multiple lanes or customer accessories
• All conveyor lengths are per customer requirements
• 坚实有力的轮廓框架或阶梯框架若干uction, to prevent frame twist
• T-slots along the length of the conveyor for ease of mounting stands, side rails, and accessories
• Large selection of standard hardware available
• Quick belt change
• Wide selection of belting available
• Compatible with allmk40 series profiles and components and mostmk50 series profiles and components

Product Options for Heavy-Duty Belt Conveyor

Heavy-Duty Belt Conveyor Options Include:

• Covers
• Encoders
• Lane dividers
• Infeed and discharge chutes
• Side tables and workstations
• Drip pan and product catch pans
• Custom motor and control options

Heavy-Duty Belt Conveyor Engineered Solution Options Include:

• Trough conveyors
• Back-lit conveyors
• Vacuum conveyors
• Magnetic bed conveyors
