宽正时皮带输送机

Product Information

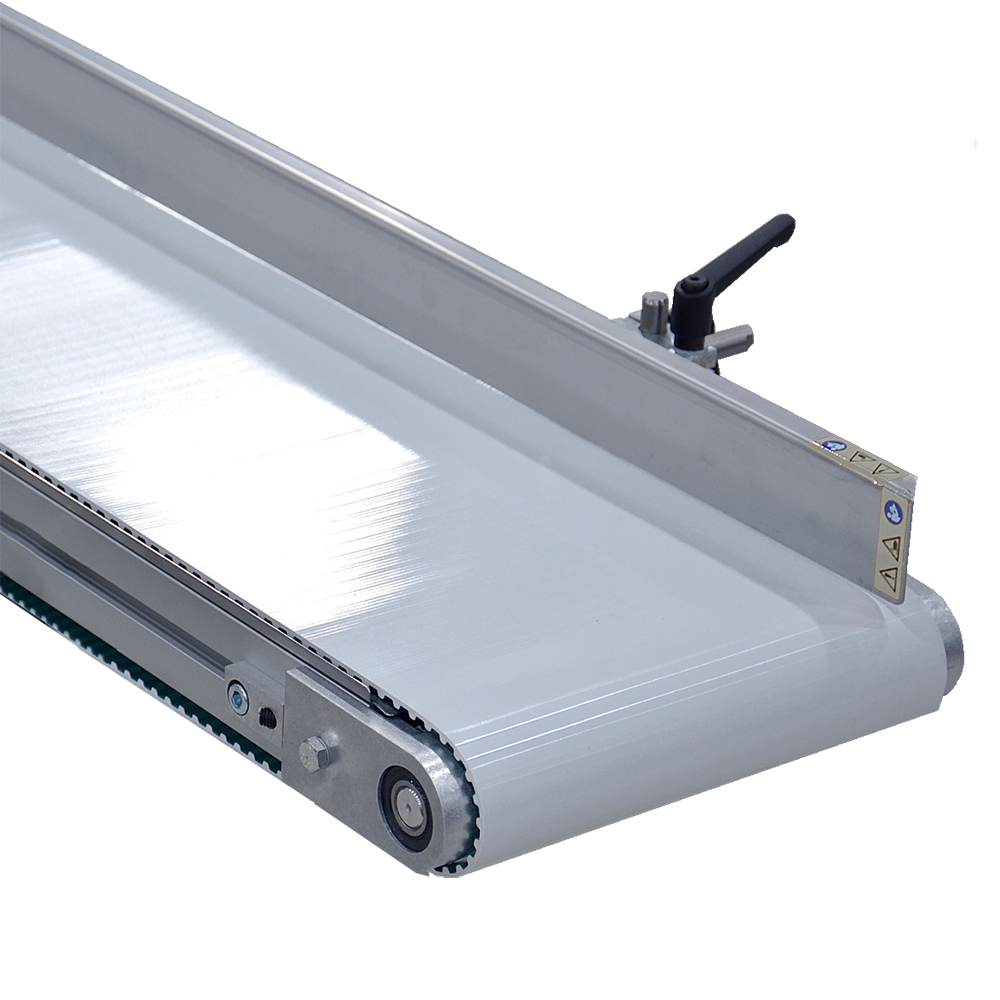

The ZRF-P 3000 is a wide timing belt conveyor, designed to precisely move your product to exact locations, reliably and accurately every time. To add to the versatile nature of this conveyor, the ZRF-P 3000 is a truly reversing conveyor, capable of continuous travel in either direction. This wide timing belt conveyor allows you to get the most out of your production and assembly.

Conveyor Features:

• Frame:40毫米高，单槽铝挤出
• Pulley:T10间距，16齿
• Width:120 mm to 620 mm
• Length:500毫米至10,000毫米
• Load:Up to 300 lbs.
• Speed:最多500.FPM.
• Positional准确性：±0.02“
• 索引准确性：±0.02“
• 电压：所有标准的美国，墨西哥和加拿大电压
• Belting:WT10 Timing Belt with a Reverse V-Guide; available with M4 inserts in the belt or cleats ultrasonically welded to the top surface, also available are a number of belt coatings including nylon and griptop
• Accessories:Compatible with allmkside rails and supports

Technical Specifications

• Anodized aluminum frame

  • 40 mm tall, with a single t-slot per side
• 20 mm integral drive shaft
• 16 tooth drive pulley
  • 160 mm of belt travel per pulley revolution
• Ultra low friction composite slider bed
• Frame width is 10 mm wider than the belt width
• Features a direct drive for a more precise, and more economical and space saving design
• Truly reversible conveyor operation due to a reverse v-guide frame feature
• 宽T10俯仰同步带
  • Three different types of belt available, see "Options" tab for more information
• Indexing and non-indexing motor and controller packages
  • See "Options" tab for more information

Product Options

电机选项

Indexing Packageincludes a BXII Series brushless DC high performing motor and driver. This package features speed control, positioning capabilities and torque limiting. Input power is 120 VAC, single phase. For digital or analog use. (Digital uses MEX02 software (free download) or OPX-2A control module (sold separately).)

• Operating Mode: Incremental or absolute
• Operation Functions:Independent, linked, linked 2, sequential, direct

连续操作包includes a W series gearmotor for three-phase input voltage. This motor can be operated continuous run or indexed, via a separate controller.

• Motor voltages: 230, 375, 400, 460 and 575 VAC

Belting Options

Belts can be supplied as with a flat top surface that can be coated or left plain. Belt coatings can be applied to allow for accumulation, or to provide a high grip surface.

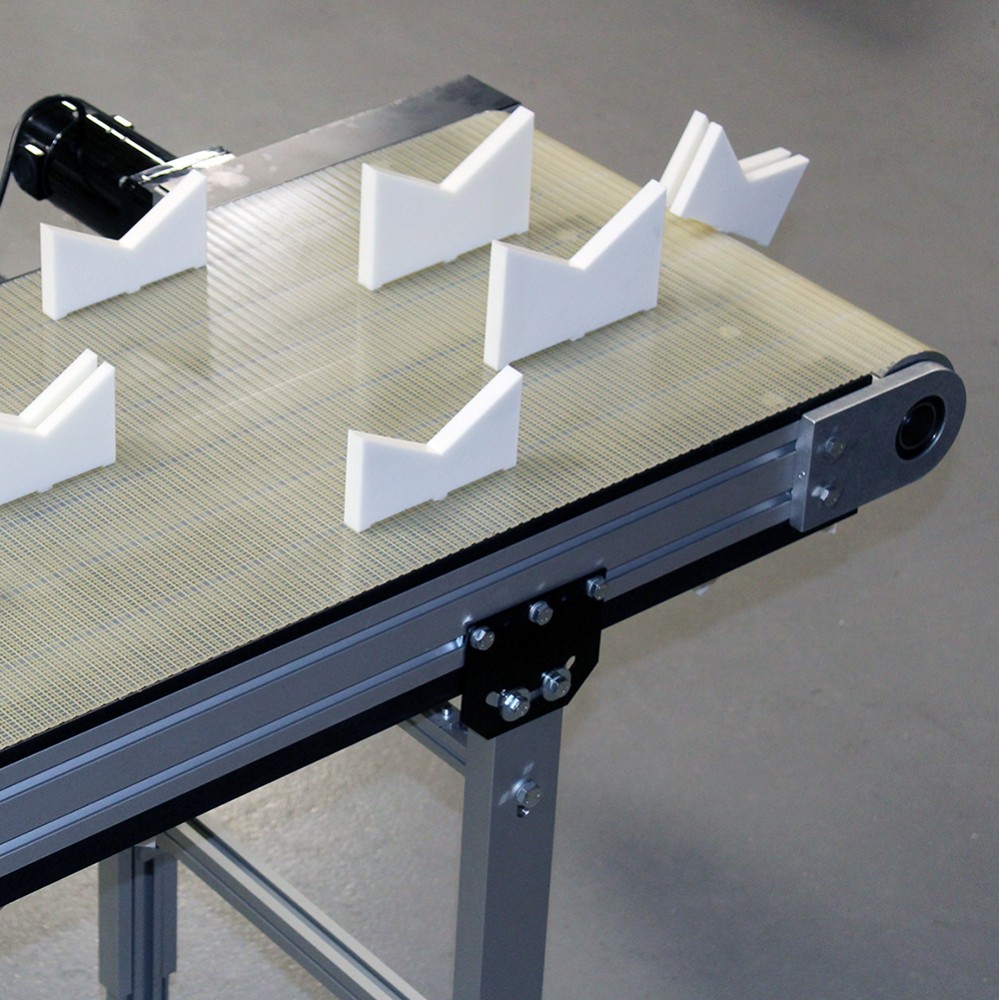

Belts can also be supplied with cleats, or profiles, ultrasonically welded to the top surface. These cleats come in a wide variety of styles, can be full or partial width, or custom designed.

If the customer wishes to supply their own cleat or belt attachment, the belts can be supplied with threaded inserts. These inserts have an M4 thread and can be laterally spaced 25 mm on center.

夹板或插入件需要定位在牙齿上。

ESD belting is available by request.
