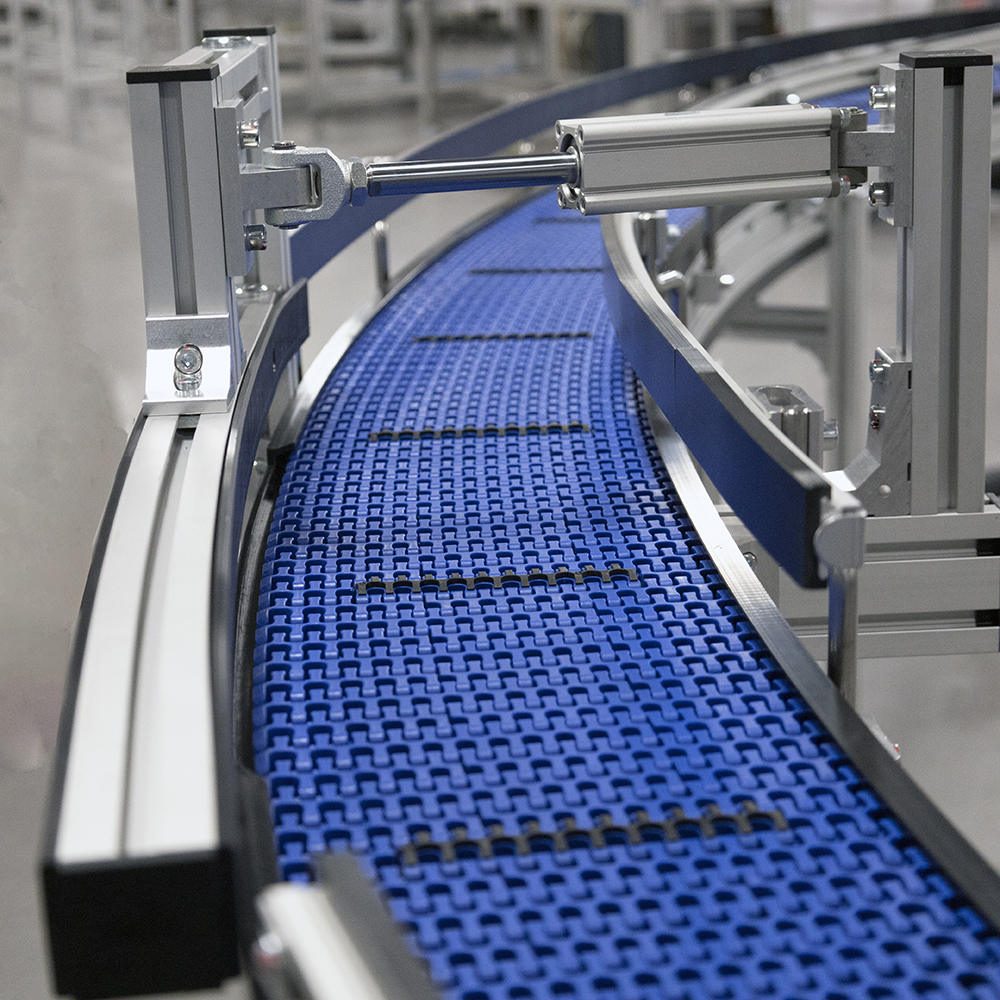

Curved Plastic Modular Belt Conveyor
mk Part Number:KMF-P 2040
Request a Quote:
Product Information
mk North America’s KMF-P 2040 curved modular plastic belt conveyors comes in twelve different widths (164 mm to 1,005 mm) and features two different curves, 90° and 45° (with 180° possible) with three standard layout options that can be modified to meet your needs. The KMF-P 2040 also allows for minor elevation changes as well.
The plastic belt is built in interlocking segments it is possible to replace a damaged portion without replacing the entire conveyor belt, thus resulting in cost savings over the life of the conveyor.
The KMF-P 2040 features a usable width of just 30 mm less the outside frame width, makes mk's curved modular belt conveyor one of the most streamlined in the marketplace.
Conveyor Features:
- Frame:80 mm deep aluminum profile frame
- Width:164 mm up to 1,005 mm
- Length:475 mm to 10,000 mm
- Load:Up to 330 lbs.
- Speed:Up to 100fpm
- Constant or Variable speed
- Voltage:All standard US, Mexico and Canadian voltages
- Belting:Plastic modular belt, flat top, flush grid, and textured
- Accessories:Compatible with allmkside rails and supports
Catalogs, Resources & Downloads
Technical Specifications
- Constructed using ourmk2040 series structuralprofile
- 80 mm tall anodized aluminum frame
- Dual t-slots along the length of the frame, per side

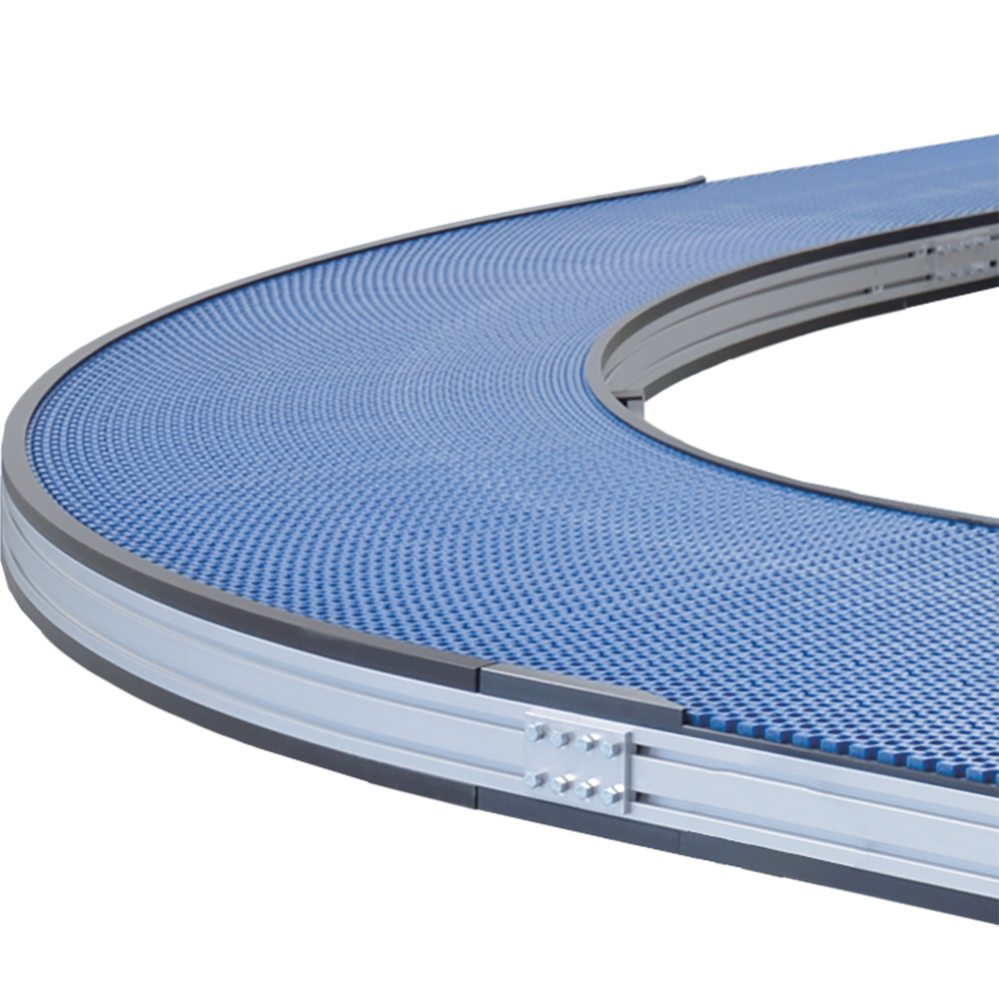

- Standard 45° and 90° curves available

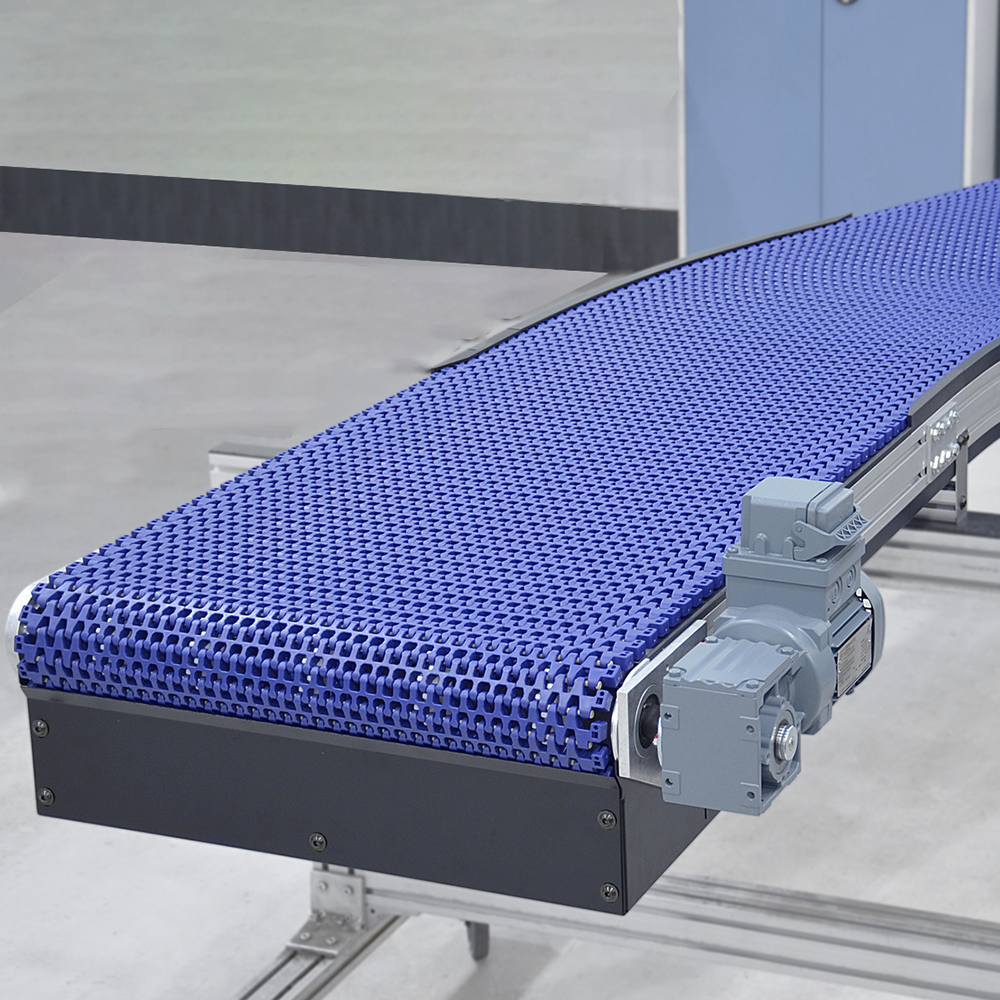

- Three different end drive options
- Three different layouts available
- UHMW-PE slider bed
- UHMW-PE underside belt support
- Maintenance-free dual-sealed ball bearings
- Positively driven via asprocketeddrive roll
- Modular belting benefits
- Quick and easy change of damaged belt sections without the need to replace the entire belt
- No need to disassemble the conveyor or remove it from its stands
- 允许有表达的能力or width greater than the length
- Compatible with allmk40 system profiles and components and mostmk50 system profiles and components
- Large selection of conveyor accessories
Product Options
- Covers
- Encoders
- Lane dividers
- Product escapements
- Specialty belt materials
- Infeed and discharge chutes
- Side tables and workstations
- Drip pan and product catch pans
- Custom motor and control options
- Custom curve angles and radii are available
