Recirculating Carousel Conveyor
mk Part Number:SRT-P 2005
Request a Quote:
Product Information

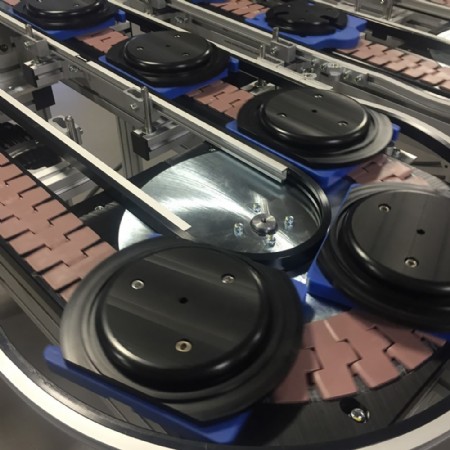

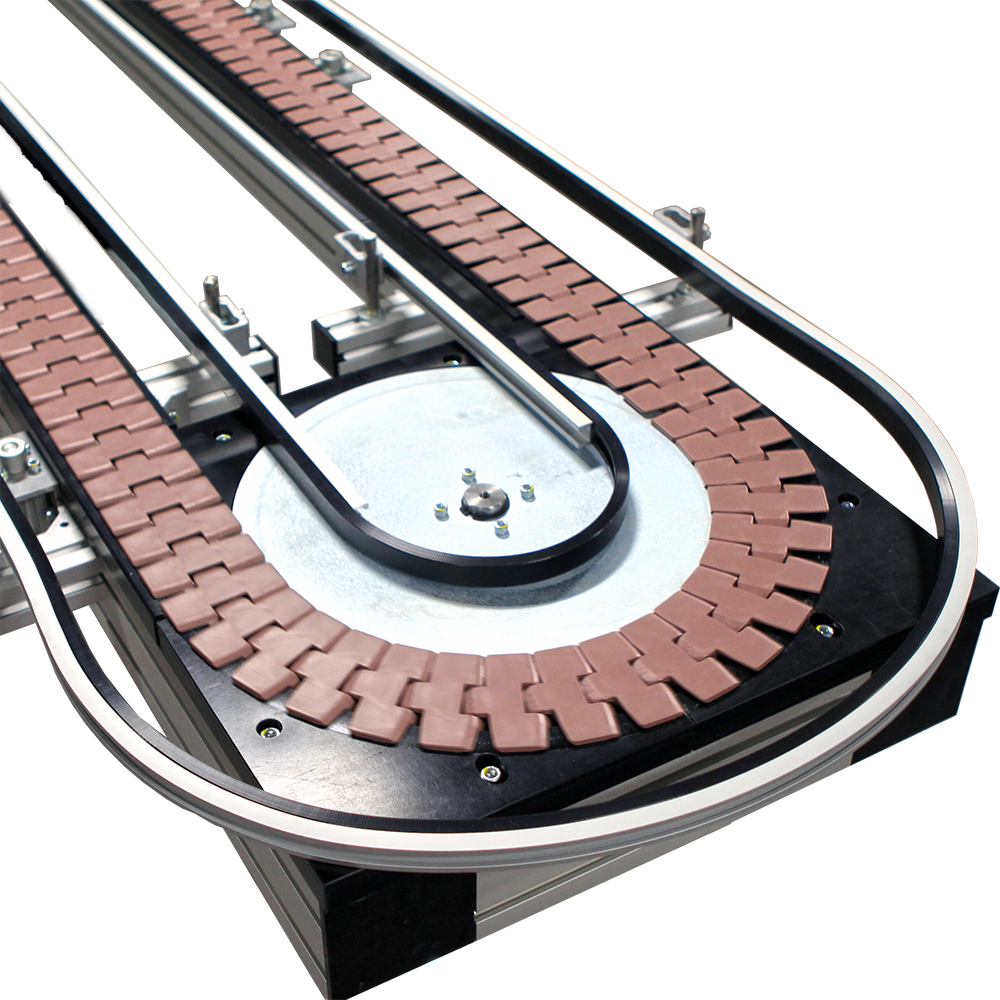

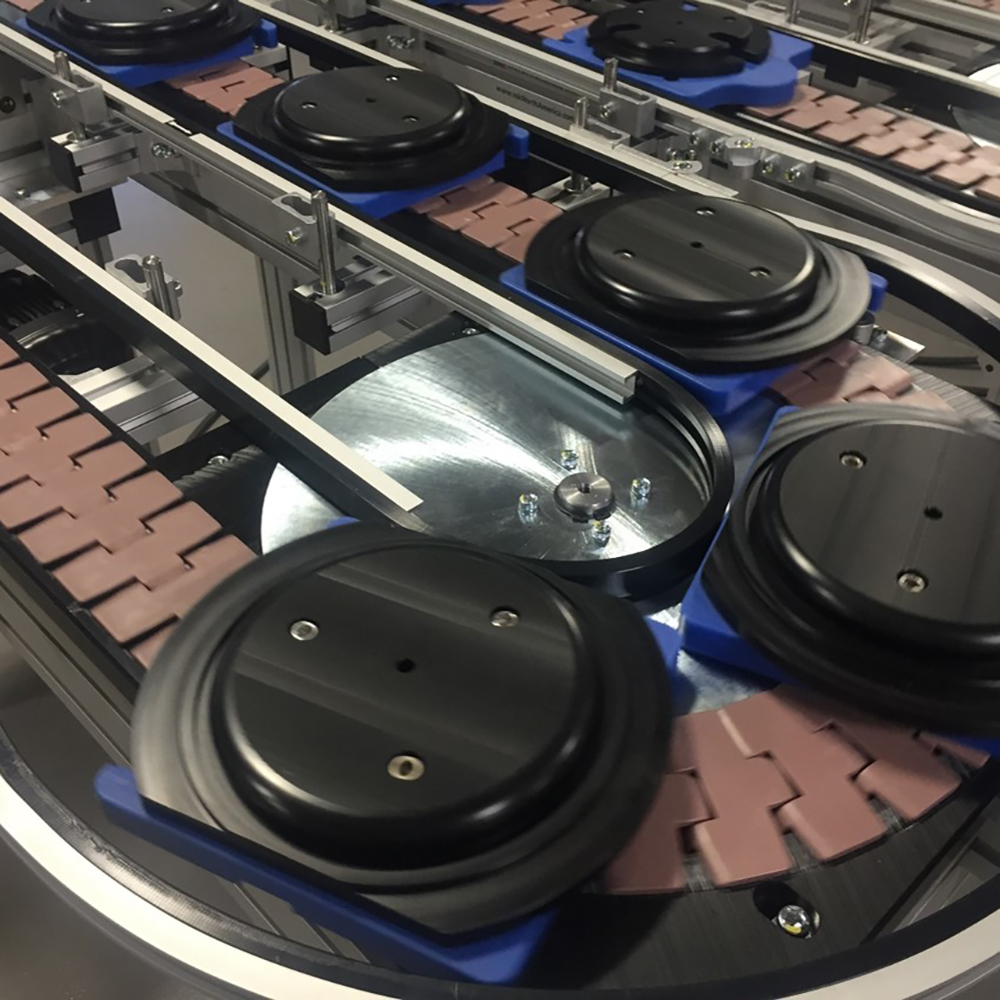

The mk North America SRT-P 2005 recirculating flat-top chain conveyor is designed to act in a “carousel” fashion – the chain completely circulating along the top surface of the conveyor, offering the ability to bring parts around in a loop from station to station.
The SRT-P 2005 carousel conveyor can be configured in a variety of different layouts including ovals, L-shapes and horseshoes.
Conveyor Features:
- Width:3.25" chain width, conveyor can be designed to accept wider parts and pallets
- Chain:1.5" pitch chain, available in various plastic materials
- Configurations:Oval, L-Shape and Horseshoe
- Speed:Up to 30fpm;Constant or Variable speedoptions
- Voltage:All standard US, Mexico and Canadianvoltages
- Accessories:Compatible with allmkside rails and support
Technical Specifications
- Constructed using ourmkstructural profile
- T-slots along the length of the frame, each side
- T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
- UHMW-PE slider bed
- Dual sealed bearings for low maintenance design
- Positively driven via sprocket
- Motor mounted under the conveyor
- Maintenance free dual-sealed ball bearings
- Compatible with allmk50 system profiles and components and mostmk40 system profiles and components
