Plastic Modular Belt Conveyor
Request a Quote
Product Information for Plastic Modular Belt Conveyor

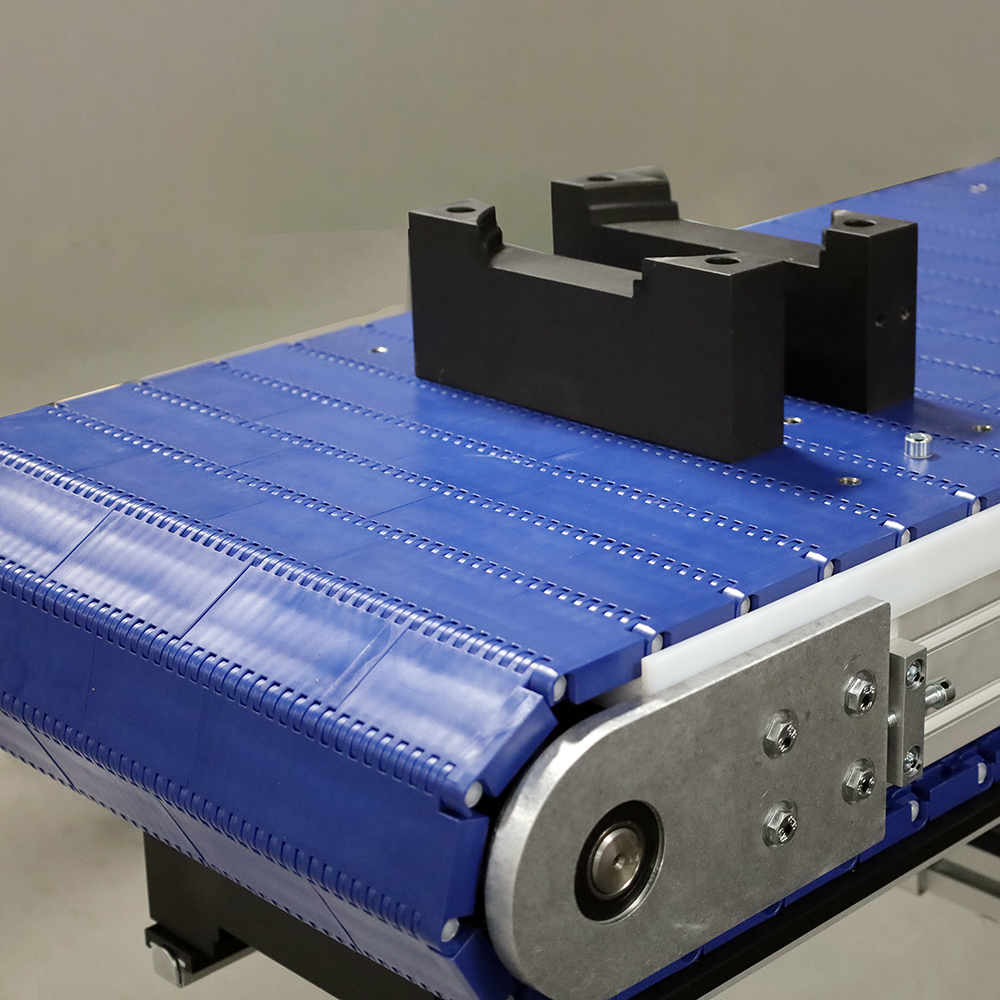

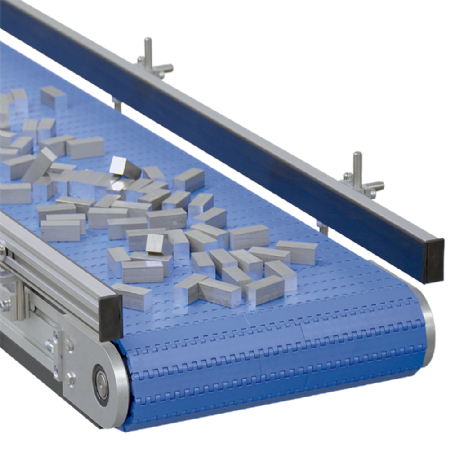

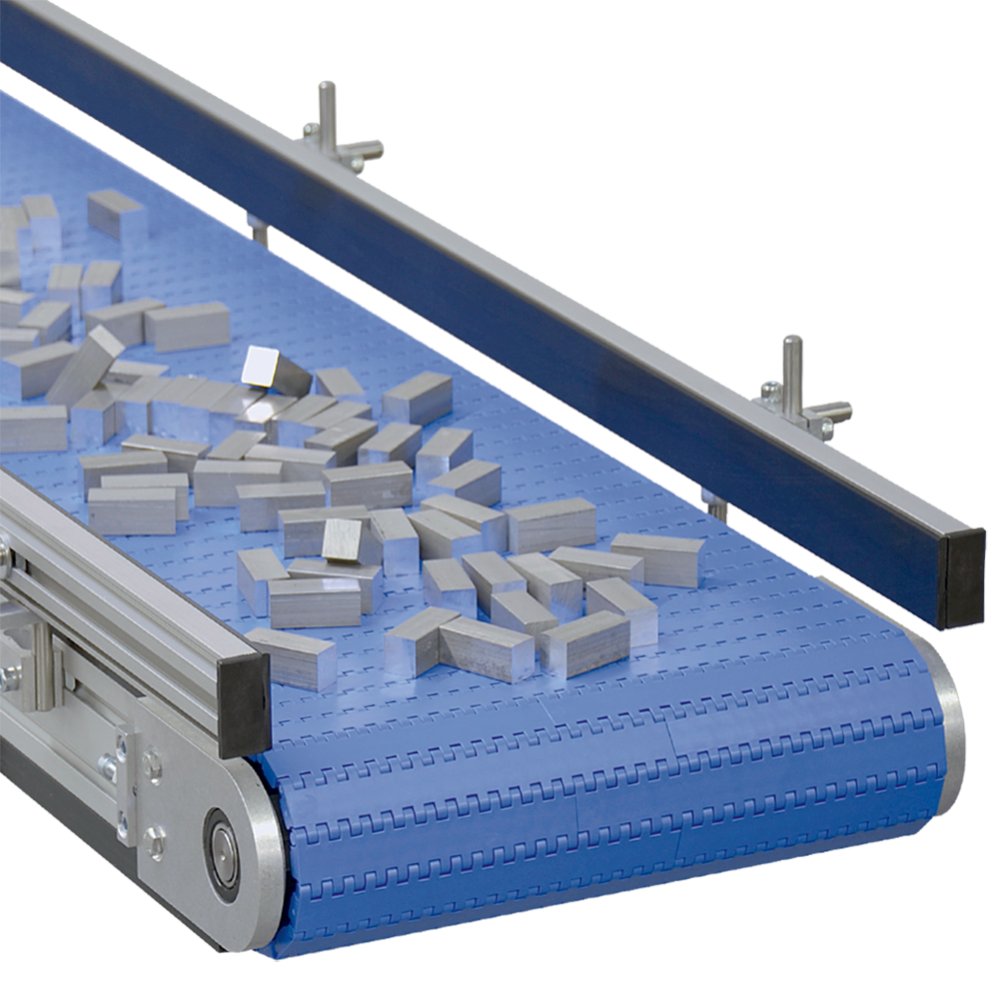

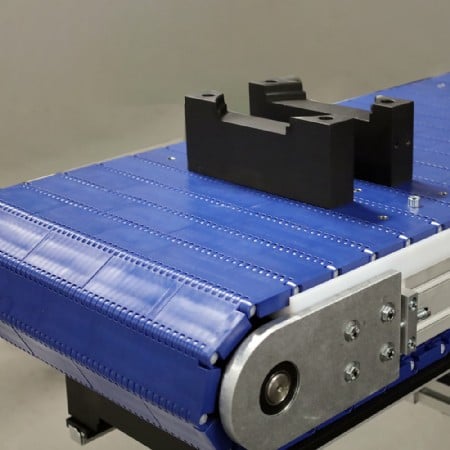

The MBF-P 2040 is a plastic modular belt conveyor, which features a streamlined conveyor design.
What distinguishes these conveyors, plastic modular belts, from standard flat belt conveyors is their high load capacities, even at narrow belt widths. The plastic modular belt is positively driven, which reduces tracking difficulties (in particular situations).
Because the plastic belt is built in interlocking segments it is possible to replace a damaged portion of belt without replacing the entire conveyor belt, thus resulting in cost and time savings. Plastic modular belts are also (typically) resistant to wear, making it ideal for food industry applications and those involving high temperatures or caustic chemicals. mk's MBF-P 2040, plastic modular belt conveyor's high load capacity also makes it useful for heavy material handling, such as in automotive or and metal working industries.
Plastic Modular Belt Conveyor Features:
- Frame:80 mm deep aluminum profile frame
- Width:80 mm up to 3,000 mm
- Length:400 mm to 10,000 mm
- Load:Up to 1,000 lbs.
- Speed:Up to 200fpm
- Constant or Variable speed
- Voltage:All standard US, Mexico and Canadian voltages
- Belting:Plastic modular belt, flat top, flush grid, and textured; plus options for cleats andsidewalls
- Accessories:Compatible with allmkside rails and supports
Catalogs, Resources & Downloads for Plastic Modular Belt Conveyor
Technical Specifications for Plastic Modular Belt Conveyor
- Constructed using ourmk2040 series structuralprofile
- 80 mm tall anodized aluminum frame
- Dual t-slots along the length of the frame, per side
- UHMW-PE slider bed
- UHMW-PE underside belt support
- Maintenance-free dual-sealed ball bearings
- Wide variety of belting materials to handle diverse customer applications
- Wide variety ofbeltingstyles – open top to flat top to textured surfaces
- 横向楔子和侧墙是可用的lt
- Positively driven via a sprocketed drive pulley
- Modular belting benefits
- Quick and easy change of damaged belt sections without the need to replace the entire belt
- No need to disassemble the conveyor or remove it from its stands
- Allows for the ability to have the conveyor width greater than the length
- Compatible with allmk40 system profiles and components and mostmk50 system profiles and components
- Large selection of conveyor accessories
Product Options for Plastic Modular Belt Conveyor
Plastic Modular Belt Conveyor Options Include:
- Covers
- Encoders
- Lane dividers
- Product escapements
- Specialty belt materials
- Infeed and discharge chutes
- Side tables and workstations
- Drip pan and product catch pans
- 定制的电动机和控制选项
Plastic Modular Belt Conveyor Engineered Solution Options Include:
- Accumulation and bi-flow tables
- Attachment style plastic modular belting
- Side running conveyors
