Heavy-Duty Flat Top Chain Conveyor

Product Information for Heavy-Duty Flat Top Chain Conveyor

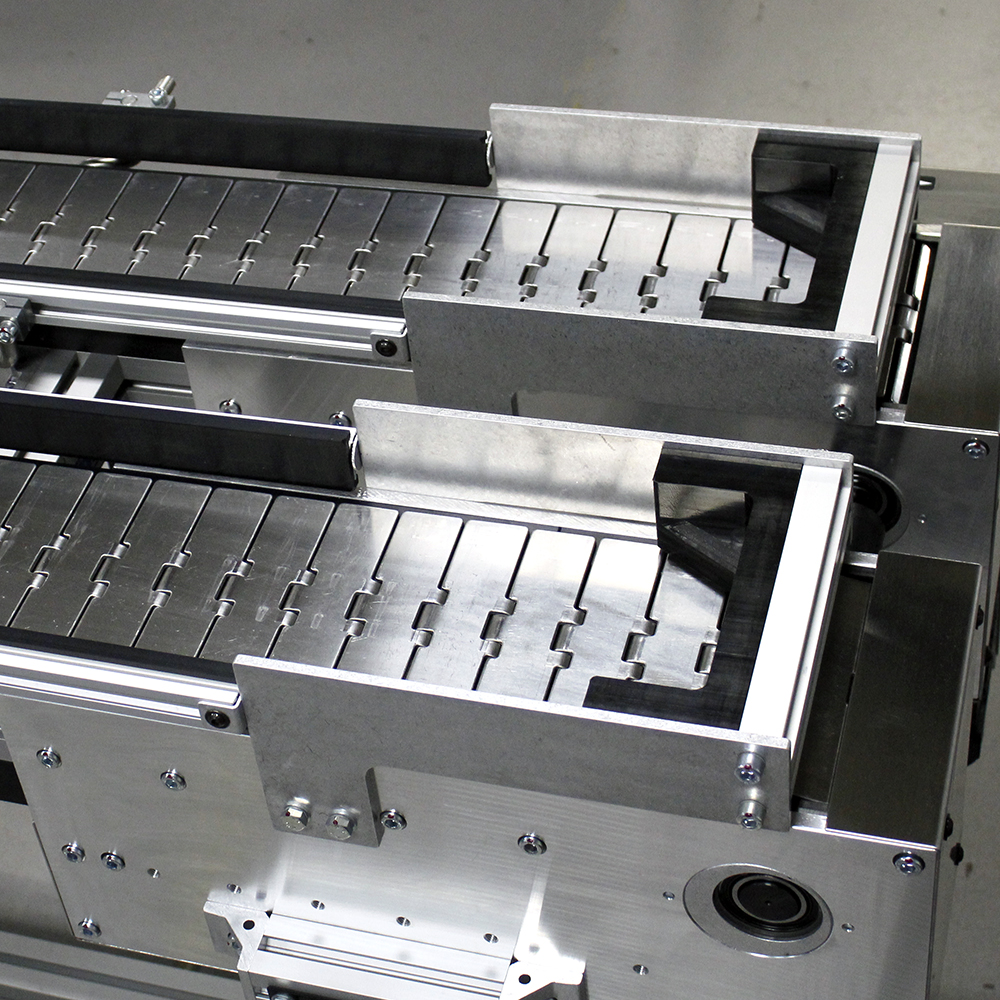

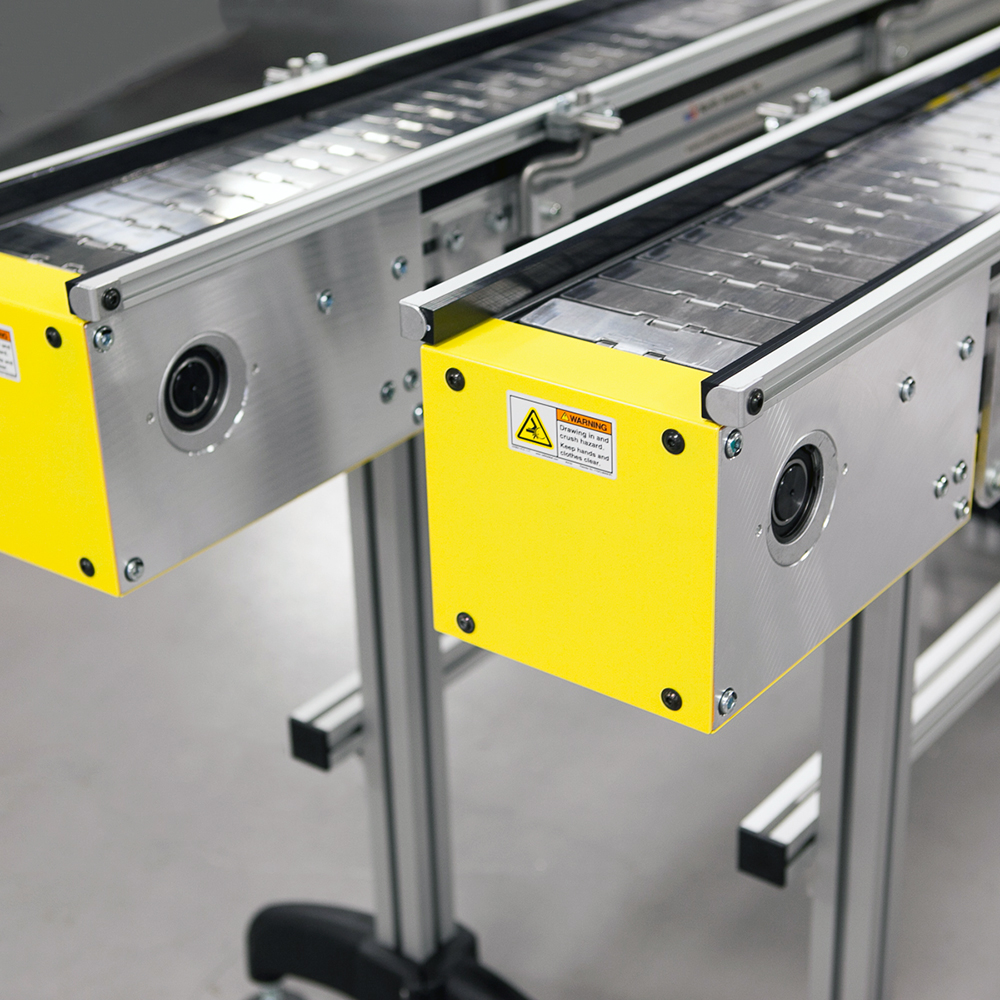

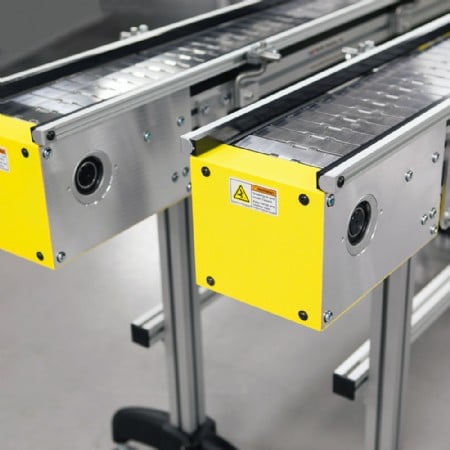

The SBF-P 2000 is a truly industrial table top chain conveyor. It is designed to operate in the most taxing of environments and to carry a wide variety of products. This slat chain conveyor can be configured as a single straight run, with a variety of curves and in multi-lane set-ups.

Conveyor Features:

• Width:3.25", 4.5", 6", 7.5", 10" and 12" chain width
• Chain:1.5" pitch chain, available in various plastic and steelmaterials
• Curves:90º and 180ºcurvesstandard
• Length:1,000 mm to 10,000mm
• Load:Up to 900 lbs.
• Speed:Up to 200fpm;Constant or Variable speedoptions
• Voltage:All standard US, Mexico and Canadianvoltages
• Accessories:Compatible with allmkside rails and support

Catalogs, Resources & Downloads for Heavy-Duty Flat Top Chain Conveyor

• Photo Gallery

Technical Specifications for Heavy-Duty Flat Top Chain Conveyor

• Constructed using ourmkstructural profile
  • T-slots along the length of the frame, each side
  • T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
• Maximum product weight
  • Horizontal conveying: 90 lbs.
• UHMW-PE slider bed
• Available in end drive configurations
• Single lane and multi-lane set ups
• Dual sealed bearings for low maintenance design
• Positively driven via sprocket
• Maintenance free dual-sealed ball bearings
• Compatible with allmk50 system profiles and components and mostmk40 system profiles and components

Product Options for Heavy-Duty Flat Top Chain Conveyor

Conveyor Options Include:

• Covers
• Encoders
• Lane dividers
• Specialty chains
• Product escapements
• Infeed and discharge chutes
• Side tables and workstations
• Drip pan and product catch pans
• Custom motor and control options

Engineered Solution Options Include:

• Continuous top loop chain
• Attachment chain and fixturing
